FURITEK MANTIS LCG COMPETITION CHASSIS KIT FOR SCX30 - BLUE TITANIUM EDITION

SKU: FUR-2858

$49.99

Brand: Furitek

Availability: In Stock

FURITEK · FUR-2858 · AXIAL SCX30 · BLUE TITANIUM EDITION MANTIS LCGCOMPETITION CHASSIS KIT For Axial SCX30 · Blue Titanium Edition More Shock Positions. More Flex. More Grip. The Blue Titanium Edition takes the MANTIS LCG competition layout and adds significantly more shock mounting positions than the standard MANTIS. More...

Import tax can be charged at receiving. Buyers are responsible to pay import tax if incurred

UPS cannot deliver to a PO Box

FURITEK · FUR-2858 · AXIAL SCX30 · BLUE TITANIUM EDITION

MANTIS LCG
COMPETITION CHASSIS KIT

For Axial SCX30 · Blue Titanium Edition

More Shock Positions. More Flex. More Grip.

The Blue Titanium Edition takes the MANTIS LCG competition layout and adds significantly more shock mounting positions than the standard MANTIS. More ways to place your shocks means more ways to unlock articulation, so your SCX30 can flex further, keep its tires on the ground, and claw through lines a stiffer setup would bounce off.

NEW vs. STANDARD MANTIS

Extra shock mounting holes for a much more flexible suspension setup

More Shock Holes

Much more flex than standard MANTIS

Ultra-Low CG

Competition-focused layout

15° Angled Skid

Improved breakover clearance

1 mm Blue Titanium

Light, rigid, premium finish

Built for builders who tune their suspension.

The FURITEK MANTIS LCG Competition Chassis Kit, Blue Titanium Edition gives the Axial SCX30 a lightweight, rigid titanium foundation for serious technical crawling. It keeps everything that made the original MANTIS work: ultra-low center of gravity geometry, a 15° angled skid, aluminum shock mounts, flexible body mounting and integrated rock sliders.

What sets this edition apart is suspension freedom. Additional shock mounting holes give you far more choice in where your shocks sit, so you can open up articulation, soften the chassis' reaction to terrain, and build an SCX30 that flexes much more than one on the standard MANTIS.

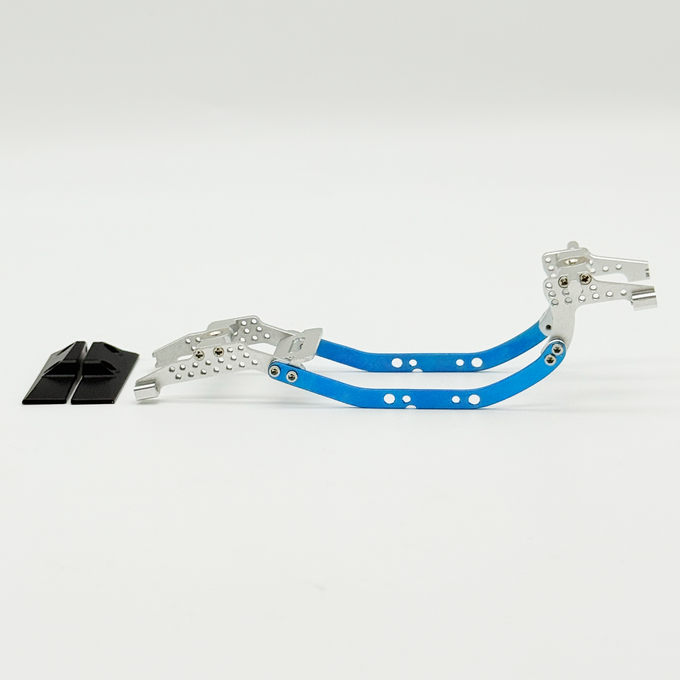

FURITEK MANTIS LCG Blue Titanium Edition chassis for SCX30

WHAT'S NEW IN THE BLUE TITANIUM EDITION

More Shock Mounting Holes. Much More Flex.

Compared with the standard MANTIS LCG, the Blue Titanium Edition adds more shock mounting positions to the chassis. Shock placement is one of the biggest factors in how a crawler articulates, and more holes means you are no longer locked into a single compromise setup.

Lay the shocks down or stand them up, move them inboard or outboard, and find the position that lets the axles droop and stuff freely. The result is a chassis that lets your SCX30 flex significantly more, keeping all four tires loaded and in contact with the rock instead of lifting a wheel and losing traction.

More articulation

Shock positions that free up axle travel so the suspension can work through uneven terrain.

More tire contact

A flexier chassis keeps tires planted on off-camber lines, side hills and broken rock.

More tuning options

Dial the setup for comp courses, trail driving, or your own shock and spring combination.

Blue Titanium Edition vs. Standard MANTIS

Feature	Standard MANTIS LCG	Blue Titanium Edition
Shock mounting holes	Standard positions	More positions
Suspension flex	Competition baseline	Significantly more flex
Chassis finish	Titanium	Blue Titanium
LCG geometry / 15° skid	Yes	Yes
Aluminum shock mounts, rock sliders, magnetic body mounting	Yes	Yes

Key Features

01 / NEW IN BLUE EDITION

Expanded Shock Mounting Holes

More shock positions than the standard MANTIS for a far more flexible, articulating suspension setup.

02 / BLUE TITANIUM

Premium Blue Titanium Finish

Blue-finished titanium rails give custom SCX30 builds a distinctive look while keeping titanium's light weight and rigidity.

03 / MANTIS LCG

Ultra-Low Center of Gravity

Competition LCG geometry keeps mass close to the terrain for stability on steep climbs, side hills and technical lines.

04 / MANTIS LCG

15° Angled Skid Geometry

Improves breakover clearance so the chassis slides over ledges and steep transitions instead of hanging up.

05 / MANTIS LCG

1 mm Precision-Cut Titanium Rails

A strong, rigid competition foundation without unnecessary upper weight.

06 / MANTIS LCG

Aluminum Shock Mount System

Lightweight, rigid aluminum mounts work with the expanded hole pattern to give you a versatile tuning platform.

07 / MANTIS LCG

Flexible Body Mounting

Integrated magnetic mounting for quick body removal, with traditional mounting still available for custom builds.

08 / MANTIS LCG

Integrated Rock Sliders

Side protection that helps the chassis slide through demanding technical obstacles.

09 / MANTIS LCG

TRI-UNITY30 Ready

Provides the center clearance for TRI-UNITY30 FULLRANGE DRIVE™ without chassis frame trimming.

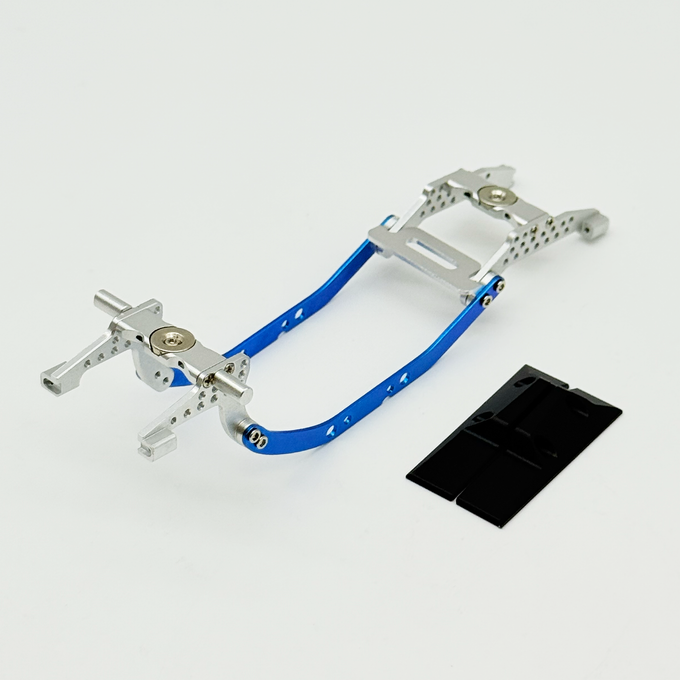

FURITEK MANTIS LCG Blue Titanium Edition chassis detail

Low CG and Flex, Working Together

A low center of gravity keeps the crawler stable; suspension flex keeps it connected to the terrain. The Blue Titanium Edition is built to deliver both. The LCG layout holds mass close to the ground, the 15° angled skid helps the chassis clear ledges and transitions, and the expanded shock mounting positions let the axles follow the rock.

On off-camber climbs and broken lines, that combination means fewer lifted tires, less tippy behavior and more forward bite when you need it most.

Wide SCX30 Compatibility

The MANTIS LCG chassis supports a wide range of Axial SCX30 platforms, from stock vehicle upgrades to custom body builds and fully customized competition crawlers.

SCX30 Toyota Tacoma SCX30 Jeep CJ-7 SCX30 Jeep Wrangler SCX30 Chevrolet K10 SCX30 Ford Bronco Custom SCX30 Builder Kits

Body mounting and component clearance may vary by vehicle model and custom configuration. Some fitting adjustments may be required.

Ready for Furitek Brushless Upgrades

The MANTIS LCG chassis is an excellent platform for modern SCX30 brushless drivetrain upgrades.

Paired with the FURITEK TRI-UNITY30 FULLRANGE DRIVE™, the MANTIS provides the necessary center clearance without chassis frame trimming. Its open layout also gives you room to optimize electronics placement, battery position and front-to-rear weight distribution, and the extra shock positions let you match the suspension to your new drivetrain setup.

What's Included

Blue Titanium 1 mm precision-cut chassis rails with expanded shock mounting holes
Aluminum shock mount system
Integrated magnetic body mounting system
Rock sliders

Required Equipment

This is a chassis kit only. Body, drivetrain, electronics, axles, suspension components, wheels, tires and battery are not included unless otherwise specified.

Recommended for ages 14+. Hobby-grade RC product, not a toy.

Technical Specifications

Product Code / SKU	FUR-2858
Product Series	FURITEK MANTIS LCG
Edition	Blue Titanium
Vehicle Scale	1/30
Platform	Axial SCX30 and compatible custom builds
Chassis Type	LCG competition chassis
Chassis Material	1 mm titanium
Chassis Finish	Blue Titanium
Shock Mounting Holes	Expanded: more positions than standard MANTIS for increased flex
Skid Angle	15°
Shock Mounts	Aluminum
Body Mounting	Magnetic and traditional mounting support
Rock Sliders	Included
TRI-UNITY30 Fitment	Compatible; no chassis frame trimming required

Recommended Upgrades & Tools

Complete your MANTIS LCG build with these Furitek parts, sold separately.

Lower CG. More Shock Positions. More Flex.

FUR-2858 FURITEK MANTIS LCG Blue Titanium Edition. A lightweight titanium competition chassis with expanded shock mounting for SCX30 builds that flex further and grip harder.
