Furitek NANO UNITY SPEED CONTROL 2-in-1 FOC ESC & Motor for Axial SCX30

Direct bolt-on design installs to the stock Axial SCX30 transmission with no additional adapter or mount required.

Positioned above the UNITY TORQUE version, SPEED CONTROL is designed for drivers who want higher speed without giving up climbing performance.

High Speed When You Want It. Controlled Torque When You Need It.

Introducing the Furitek NANO UNITY SPEED CONTROL, a premium 2-in-1 brushless power system designed for Axial SCX30 drivers who want noticeably higher speed without sacrificing climbing ability or low-speed control.

Engineered as the performance-focused counterpart to the UNITY TORQUE, SPEED CONTROL delivers a significant increase in top speed while maintaining excellent torque and precision for technical crawling.

On 2S LiPo, SPEED CONTROL delivers over 1.5x the speed of the stock SCX30 motor, while retaining smooth throttle modulation and confident climbing performance.

Designed for Axial SCX30

The NANO UNITY SPEED CONTROL system is precision-engineered specifically for the Axial SCX30 platform. Its compact footprint and optimized layout ensure perfect fitment, balanced weight distribution, and efficient power transfer through the SCX30 drivetrain.

This system is ideal for drivers who want both trail speed and controlled crawling in a clean, organized chassis layout.

True 2-in-1 ESC and Motor Integration

Unlike traditional setups that require a separate ESC and motor, NANO UNITY SPEED CONTROL integrates both into a single streamlined unit.

This true 2-in-1 architecture reduces wiring complexity, eliminates external mounts or adapters, and delivers a cleaner, more reliable installation. The result is a lighter, simpler, and more premium SCX30 build.

Speed-Controlled Brushless Performance

NANO UNITY SPEED CONTROL is tuned to deliver a higher RPM ceiling while preserving usable torque across the low and mid RPM range.

This balance allows the vehicle to move quickly on open terrain while still climbing confidently and maintaining precise control on rocks, obstacles, and steep sections.

Compared to the UNITY TORQUE version, SPEED CONTROL offers a more aggressive performance profile and is positioned as a higher-end option for drivers seeking maximum versatility.

Advanced FOC Control Technology

Powered by Furitek’s refined FOC (Field Oriented Control) algorithm, NANO UNITY SPEED CONTROL delivers smooth startup, predictable throttle response, and stable power delivery across the entire RPM range.

Even at low speeds, throttle control remains precise and progressive, allowing controlled crawling despite the increased top-end performance.

Built-in Wireless Tuning and Smart Control

The ESC inside NANO UNITY SPEED CONTROL is based on Furitek’s NanoPython ESC architecture, featuring a built-in wireless module for seamless mobile tuning and monitoring.

Users can connect directly to the Furicar App on iOS and Android for setup, tuning, and system monitoring. No programming cards, no cables, and no external modules are required.

Throttle curves, startup behavior, and performance characteristics can be adjusted wirelessly, allowing drivers to fine-tune the balance between speed and control.

Real-Time Telemetry and Wireless Firmware Updates

With built-in wireless connectivity, NANO UNITY SPEED CONTROL provides real-time telemetry through the Furicar App, including voltage, current, temperature, and throttle data, with update rates up to 10Hz.

Firmware updates are performed wirelessly via the app, with free lifetime firmware updates, ensuring continued optimization and long-term system support.

Integrated 5.5V 3A BEC

NANO UNITY SPEED CONTROL features an integrated 5.5V 3A BEC, designed to provide stable and reliable power for most standard micro servos used in SCX30 applications.

This ensures consistent steering performance during higher-speed trail driving and technical crawling.

Key Features

• True 2-in-1 brushless ESC and motor design

• Speed-focused tuning with strong climbing capability

• Over 1.5x faster than stock SCX30 motor on 2S LiPo

• Advanced FOC control for smooth throttle response

• Built-in wireless tuning module

• Direct connection to Furicar App on iOS and Android

• No cables or external modules required for tuning

• Real-time telemetry up to 10Hz

• Wireless firmware updates with free lifetime updates

• Integrated 5.5V 3A BEC

• Optimized for 2S LiPo operation to maximize speed while maintaining control

• Ultra-compact design with direct bolt-on installation

• Designed specifically for Axial SCX30

Why Choose NANO UNITY SPEED CONTROL

The Furitek NANO UNITY SPEED CONTROL is the premium choice for Axial SCX30 owners who want significantly higher speed than stock without giving up climbing ability or low-speed control.

It is ideal for drivers who want one system that can crawl confidently, move quickly on trails, and deliver a cleaner, more advanced installation than traditional setups.

Furitek NANO UNITY SPEED CONTROL

More speed than stock. Controlled climbing. Premium performance.

Built for Axial SCX30.

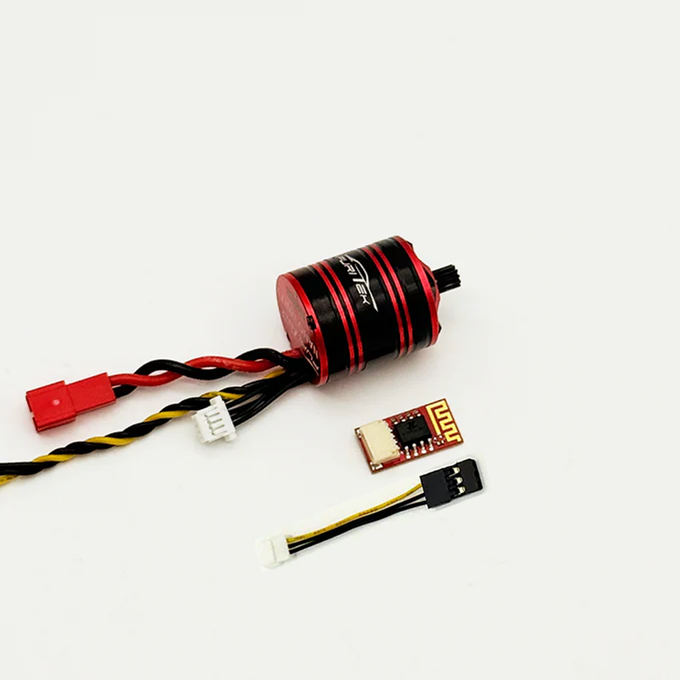

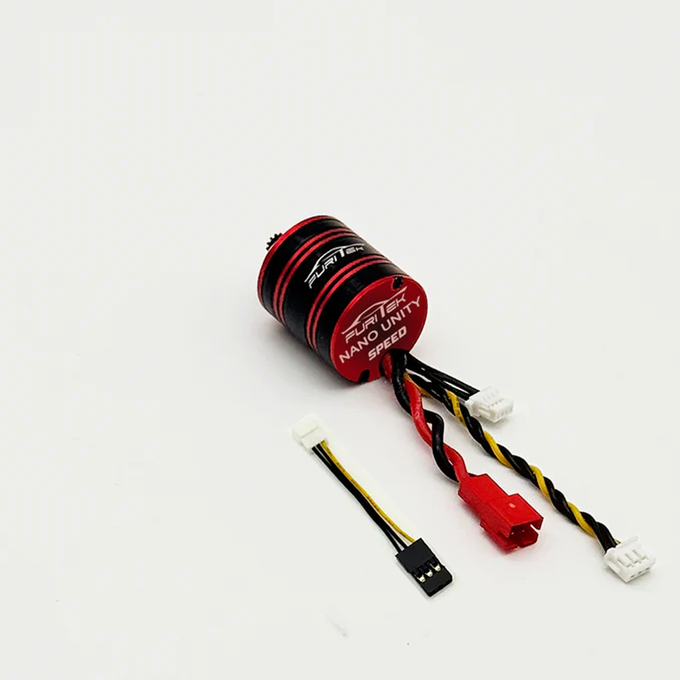

What’s Included

• Furitek NANO UNITY SPEED CONTROL 2-in-1 FOC ESC & Motor

  Integrated brushless ESC and motor system designed specifically for Axial SCX30

• 11T Pinion Gear

  Pre-selected pinion optimized for speed and control balance

• Built-in Wireless Module

  Integrated wireless module for direct connection to the Furicar App on iOS and Android

• Signal Adapter Cable

  Adapter cable for connecting the system to a standard radio receiver

Requirements

• 2-channel or higher TX and RX radio system required

• ESC signal cable must be connected to CH2 on the receiver

⚠️ Important Notice (DIY Connector Users)
If you are installing or using a DIY battery connector, please ensure the connector polarity is correct before plugging in the battery.

Incorrect polarity will cause immediate and serious damage to the ESC and motor.
Damage caused by reversed polarity is not covered under warranty.
