FURITEK SLIDETECH RACE 1/10 160A Sensored ESC w/ OLED & Internal Fan – Stock/Mod Competition ESC

🏁 Engineered to Race. Tuned to Win.

The Furitek SlideTech RACE is a high-performance 160A sensored ESC built specifically for 1/10 Stock and Mod racing. Designed from the ground up for track dominance, it delivers ultra-smooth throttle, sharp braking response, and rock-solid reliability lap after lap.

At its core is a custom racing firmware with true Blinky Mode – guaranteeing zero timing at all times for full legality in Stock class competitions. No hidden boosts, no gimmicks – just clean, regulated power you can trust.

A dedicated external WiFi module, physically separated from the ESC body, offers interference-free real-time tuning, giving you full control over parameters without signal noise – a design uniquely optimized for competitive racing environments.

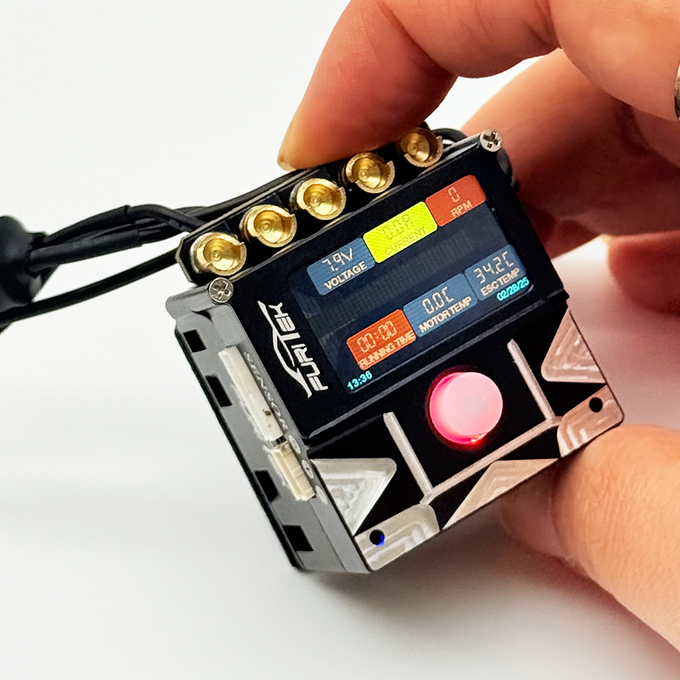

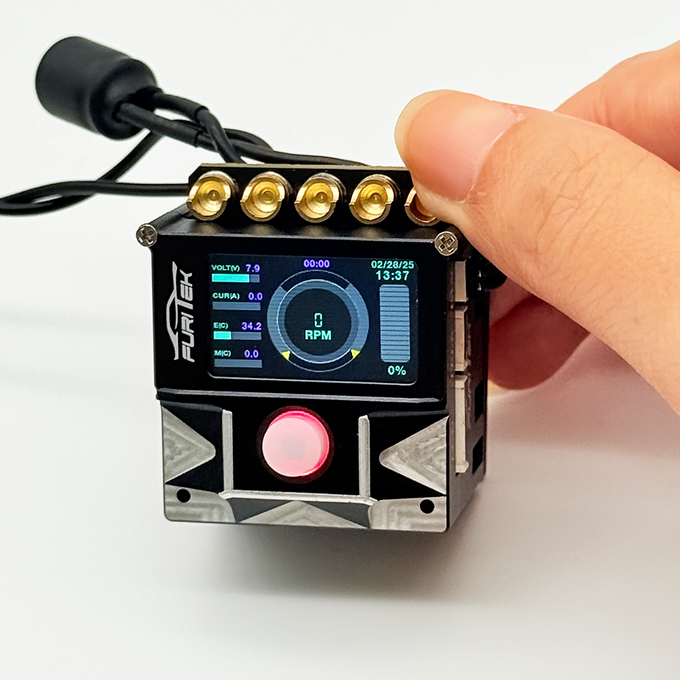

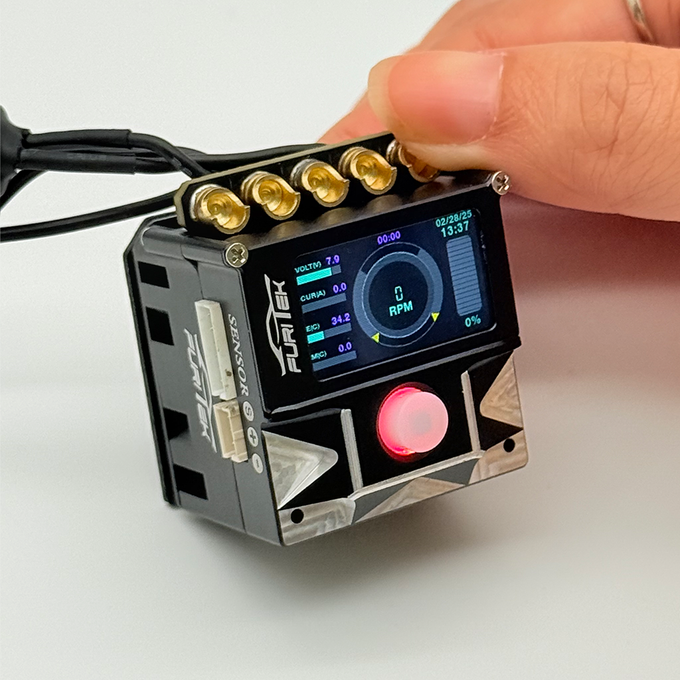

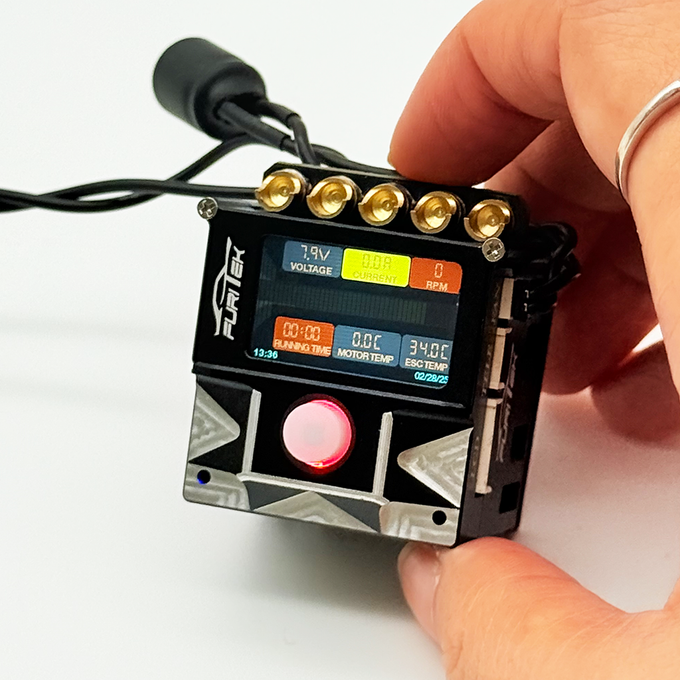

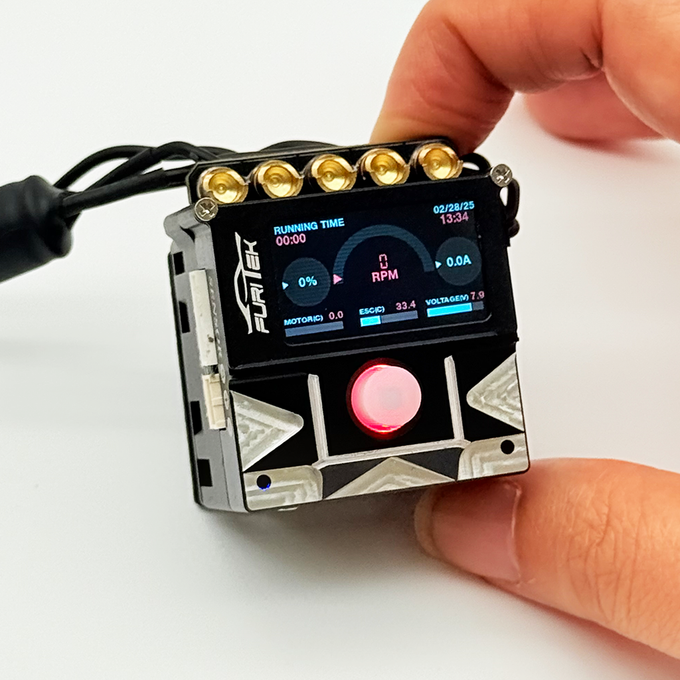

The integrated OLED display allows quick adjustments right at the track, while the intelligent internal fan keeps temps in check even during intense finals.

🔥 Key Features for 1/10 Off-Road & On-Road Stock/Mod Racing

🏁 Engineered for Racing. Optimized for Victory.

✅ Designed for 1/10 Off-Road & On-Road Race – Perfect for buggy, touring, pan car, and stadium truck platforms.

✅ 160A Sensored Brushless ESC – Delivers ultra-smooth throttle and braking for total control under all conditions.

✅ Race-Optimized Firmware – Specifically tuned for Stock & Mod class racing with professional-level control and consistency.

✅ Default Blinky Mode with True Zero Timing – Always runs at 0° timing in Blinky mode; fully legal for ROAR/EFRA Stock class.

✅ Initial Motor Bell Angle Setting – Accurately calibrate your motor’s bell angle for precise total timing when using Turbo/Boost modes.

✅ Turbo & Boost Timing Control – Fine-tune acceleration and top-end power for Mod racing excellence.

✅ Adjustable PWM Frequency up to 64KHz – Achieves maximum throttle clarity, motor smoothness, and responsiveness.

✅ Built-in High-Power BEC (6.0V–7.4V, 10A Peak) – Supports high-torque servos and ensures voltage stability during aggressive runs.

✅ Throttle Curve Tuning – Fully customizable for different track conditions and driving styles.

✅ Advanced ABS Braking System – Enhances braking stability, reducing rear slide or nose dive during deceleration.

✅ Smart Internal Cooling Fan – Integrated fan ensures thermal stability without increasing overall ESC size.

✅ A–C Phase Flip Function – Swap motor phases via software without soldering.

✅ Dust-Resistant Internal Architecture – Rugged design built to withstand both indoor and off-road environments.

✅ Real-Time Data Monitoring – View live battery voltage, ESC temperature, and motor temperature directly via the onboard OLED or wireless interface.

✅ Pre-Race Self-Diagnostic System – Automatically checks motor temperature, sensor cable connection, and battery voltage before each race for added safety and reliability.

📊 Pro-Level Telemetry & Modular Wireless Tuning – Built for Racing

✅ External OLED Telemetry Display (Optional) – Mount it anywhere on your off-road or on-road race car to view real-time battery voltage, ESC temp, motor temp, throttle percentage, and more. Wired connection for zero-lag response — and with upcoming VisionLink support, wireless screen mirroring is just around the corner. Future Infinity Display upgrade will deliver next-gen clarity and extended race data views.

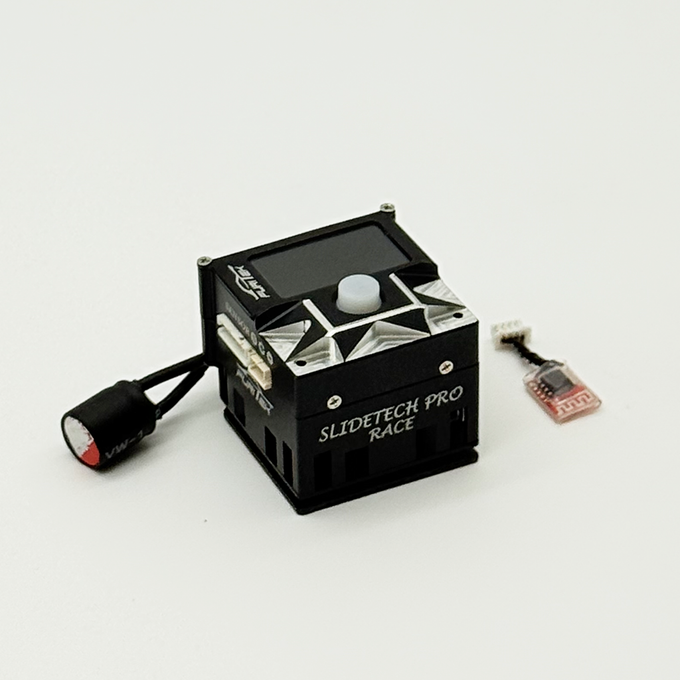

✅ Dedicated External WiFi Tuning Module – Unlike the Drift version, the SlideTech RACE uses a separate, detachable WiFi module. Simply plug it in when you need to tune or update firmware, then remove it before racing to ensure uninterrupted ESC performance. Full support for wireless setup, tuning, and telemetry via iOS & Android apps.

✅ Integrated SD Card + Real-Time Clock (RTC) Logging – Capture unlimited racing data with time-stamped logs for in-depth post-race analysis and performance optimization.

🔥 Superior Cooling & Durability

✅ Pre-Race Self-Diagnostic System – Automatically monitors motor temperature, battery voltage, and sensor cable status before every run for optimal safety and performance.

✅ Compact Internal Cooling Fan Technology – Integrated micro-fan system provides active cooling without increasing ESC size, ensuring consistent thermal performance even during aggressive Turbo and Boost runs. Designed for reliability and silent operation, it eliminates the need for bulky external fans.

✅ Enhanced Dust-Resistant Design – Improved enclosure sealing and internal layout help protect critical components from dust and fine debris, increasing long-term durability and reducing maintenance – a clear upgrade over the standard SlideTech.

🔄 Full Customization & Future-Proof Tech

🔧 Technical Specifications

✅ Scale Size: 1/10 – Perfectly optimized for high-performance drift and stock racing.

✅ Type: Sensored Brushless ESC – Delivers precise throttle response and superior control.

✅ Input Voltage: 2S LiPo

✅ BEC Output: Adjustable 6V-7.4V, 10A peak – Provides powerful and consistent steering performance.

✅ Current Handling:

🔹 Continuous: 160A – Built for extreme endurance.

🔹 Peak: 800A – Handles intense bursts of acceleration with ease.

✅ Motor Limit: 5.5T – Supports high-speed and torque-intensive applications.

✅ Wireless Programmability – Fully adjustable parameters via a detachable external WiFi module, allowing for quick and seamless tuning when needed. Simply plug in to configure, then unplug for uninterrupted racing performance.

✅ Dimensions: 1.41 x 1.56 x 1 inches (35.9 x 39.6 x 25.5 mm) – Compact and lightweight design for optimized handling.

✅ Weight: 1.83 oz (52 g) – Precision-engineered for maximum performance without unnecessary bulk.

🔥 Designed for those who demand the best in performance, control, and innovation! 💨🔥

🚨 Important Reminder for Slidetech Esc Users 🚨

Please double-check power connector polarity before soldering!
Incorrect polarity can cause permanent damage to your Slidetech system and will NOT be covered under warranty.

✅ Tips:

• Always verify + and – before connecting power

• Use proper tools and take your time to avoid mistakes

Your attention to detail can save your electronics! 🔧⚠️
