FURITEK NANO CORE 30 Smart Brushless ESC & Motor Combo for Axial SCX30

SKU: FUR-2841

$74.99

Brand: Furitek

Availability: In Stock

FURITEK · BUILT FOR AXIAL SCX30 NANO CORE 30 Smart Brushless ESC & Motor Combo Take control of the climb. Smooth low-speed response. Strong crawling torque. Full tuning from your phone. Give your SCX30 a matched Furitek brushless system built for the obstacles ahead. $74.99 MSRP · USD Brushless ESC...

Import tax can be charged at receiving. Buyers are responsible to pay import tax if incurred

UPS cannot deliver to a PO Box

FURITEK · BUILT FOR AXIAL SCX30

NANO CORE 30

Smart Brushless ESC & Motor Combo

Take control of the climb.

Smooth low-speed response. Strong crawling torque. Full tuning from your phone. Give your SCX30 a matched Furitek brushless system built for the obstacles ahead.

$74.99 MSRP · USD

Brushless ESC + VENOM30 1212 motor
Built-in wireless module included

2S LiPo

Simple battery setup

6V / 3A

Integrated BEC

VENOM30 1212

Brushless motor

FuriCar App

iOS & Android

Built around the way you crawl.

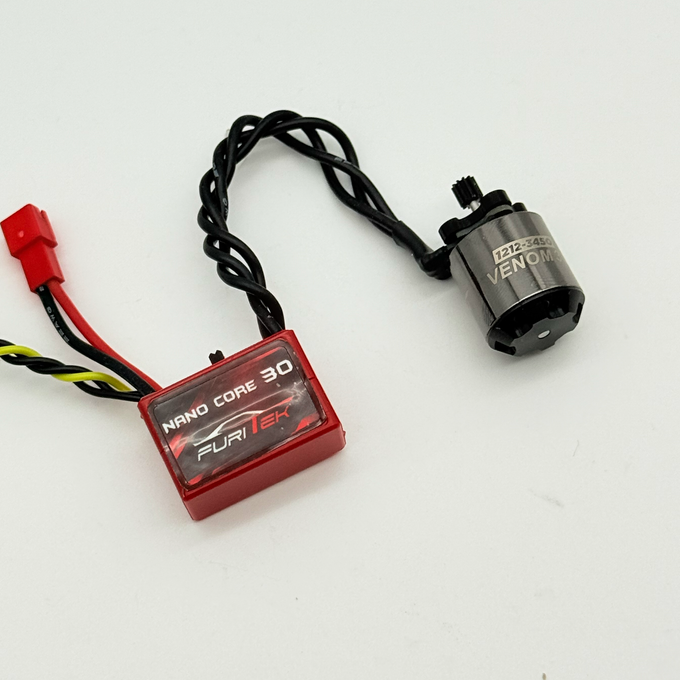

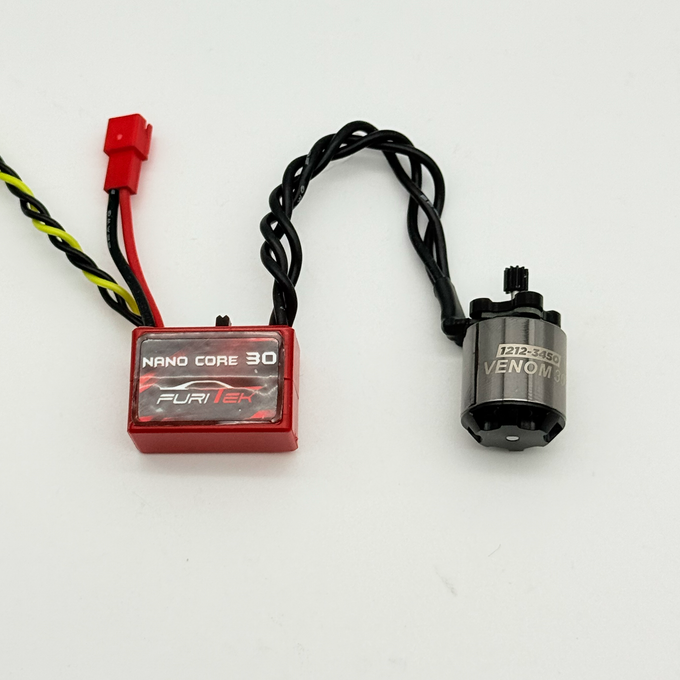

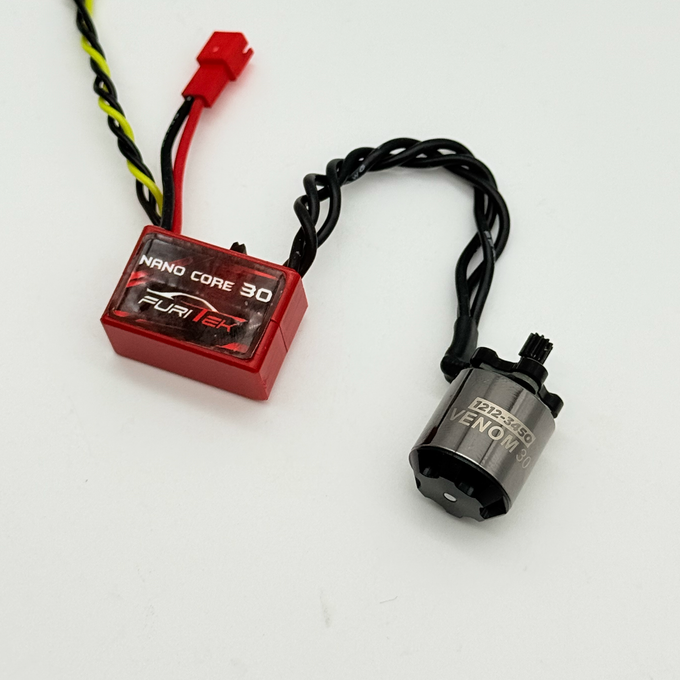

FURITEK NANO CORE 30 brushless ESC and VENOM30 1212 motor combo

01 / CRAWL WITH CONTROL

Make every throttle input count.

Ease into a technical climb, work through an obstacle, or settle into a controlled descent. The matched ESC and VENOM30 1212 brushless motor deliver predictable low-speed response and strong crawling torque.

02 / TUNE FROM YOUR PHONE

Make it drive your way.

Adjust throttle response, drag brake, driving behavior, and other supported ESC settings with the full FuriCar App for iOS and Android. Wireless connectivity is built in, so no external programming card is needed.

03 / KEEP THE BUILD SIMPLE

Compact power for your SCX30.

A dedicated brushless ESC in a lightweight plastic housing keeps the electronics compact and protected. A 2S-only power system and integrated 6V / 3A BEC provide a straightforward setup for the receiver and steering servo.

Your first Furitek brushless upgrade starts here.

Choose NANO CORE 30 for a compact crawler build with smooth control, full app tuning, and a matched motor and ESC at $74.99. It brings your SCX30 into the Furitek firmware and software ecosystem with a simple 2S setup.

What's Included

Furitek NANO CORE 30 Brushless ESC with Built-in Wireless Module
Furitek VENOM30 1212 Brushless Motor
Servo Adapter Cable
11T Pinion Gear
2 × M2 × 4mm Silver Pan Head Machine Screws

Required Equipment

Compatible 2-channel to 4-channel transmitter and receiver system. See the recommended options below.
Compatible 2S LiPo battery
Axial SCX30 or compatible custom micro RC platform

Recommended for ages 14+. Hobby-grade RC product, not a toy.

Technical Specifications

Application	Axial SCX30 and compatible custom micro RC platforms
ESC	FURITEK NANO CORE 30 Brushless ESC
Motor	FURITEK VENOM30 1212 Brushless Motor
ESC Housing	Lightweight plastic enclosure
Battery Support	2S LiPo only
BEC Output	6V / 3A
Wireless Module	Built-in
App Support	Full FuriCar App support for iOS and Android
MSRP	$74.99 USD

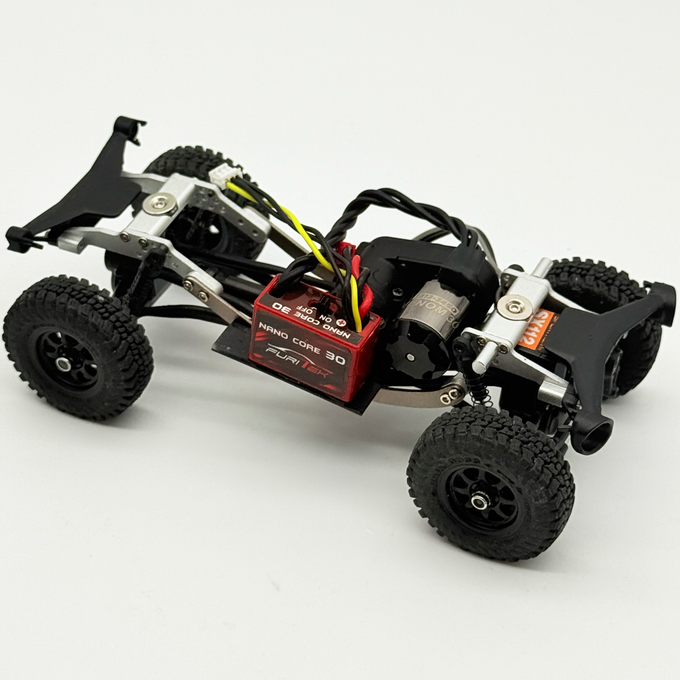

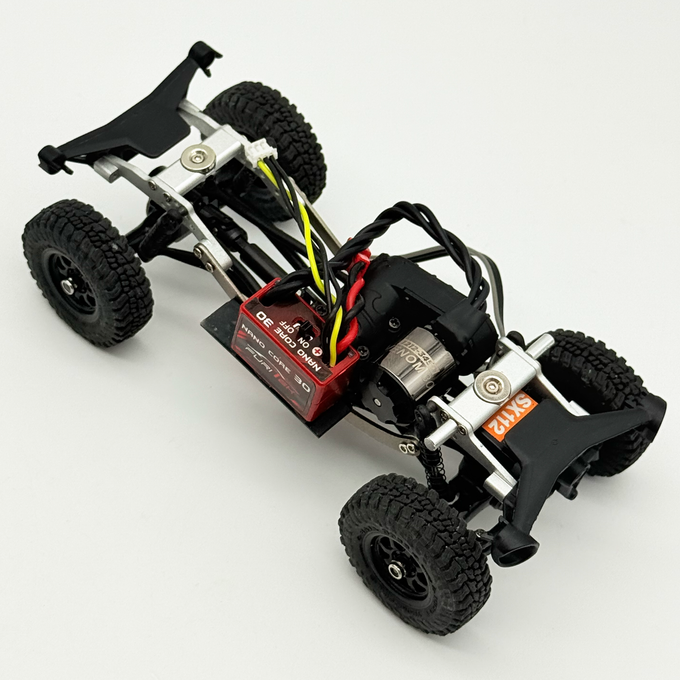

FURITEK NANO CORE 30 installation and product detail

Recommended Transmitter & Receiver Options

Choose a complete transmitter and receiver combo, or select a receiver to match the transmitter you already own. The following radio products are sold separately from the NANO CORE 30 combo.

Buying a New TX/RX System?

We recommend either of these Furitek transmitter and receiver combos for your build:

FURITEK GRIPOR V2 4CH TX/RX System
A compact 4-channel transmitter and receiver system for micro and mini RC builds.
Furitek MicroFlex PRO 4WS TX/RX Combo
A transmitter and receiver combo for drivers who want four-wheel steering control for their crawler build.

Keeping Your Stock SCX30 Transmitter?

Pair your stock Axial SCX30 SLT2 transmitter with the Furitek Micro SLT2 Receiver. This receiver is for use with compatible Furitek ESCs only and requires a one-time bind to your transmitter. Transmitter sold separately.

Already Using a Flysky FS-GT5?

Choose the Furitek Nano GT5 Receiver for your Flysky FS-GT5 transmitter. This compact 4-channel receiver is designed for SCX24 and SCX30 builds, works with all Furitek ESC systems, and requires a one-time bind. Flysky FS-GT5 transmitter sold separately.

Prefer higher wheel speed? The separately available NANO CORE 30 SPEED is designed for faster driving. Choose standard NANO CORE 30 for crawling.

Compare FURITEK SCX30 Brushless Systems

Choose the system that fits your driving style, power requirements, and installation space. All systems below support the full FuriCar App.

All MSRP prices are in USD. Scroll horizontally to view the full comparison on smaller screens.

Series	MSRP	Motor	Battery Support	BEC	Best For & Key Benefits	Recommended Scale/Application
NANO CORE 30	$74.99	VENOM30 1212	2S only	6V / 3A	An affordable first brushless crawler upgrade with simple setup and full app tuning.	1:30 scale SCX30 and compatible ultra-micro crawlers (Entry-level crawling)
NANO CORE 30 SPEED	$84.99	VENOM30 1212 SPEED	2S only	6V / 3A	An affordable first brushless upgrade for more wheel speed, with full app tuning.	1:30 scale SCX30 and compatible ultra-micro RC builds (Entry-level higher-speed driving)
NanoModo	$99.99	Nano Komodo 1205	2S to 3S	5.5V / 7.4V selectable 5A	Advanced crawling with a smaller, lighter motor, smoother control, aluminum ESC housing, and a stronger selectable BEC.	1:30 scale SCX30 and compatible custom micro crawlers (Advanced crawling performance)
NanoModo SPEED	$119.99	Nano Komodo SPEED	2S to 3S	5.5V / 7.4V selectable 5A	Advanced speed builds with a compact motor, smooth control, aluminum ESC housing, and a stronger selectable BEC.	1:30 scale SCX30 and compatible custom micro RC builds (Advanced higher-speed performance)
NANO UNITY TORQUE	$99.99	Integrated Motor + ESC	2S to 3S	5.5V / 5A	Compact crawler builds focused on torque, with an integrated motor and ESC to save space and reduce wiring.	1:30 scale SCX30 and compatible custom micro crawlers (Advanced compact builds focused on torque)
NANO UNITY SPEED	$119.99	Integrated High-Speed Motor + ESC	2S only	5.5V / 5A	Compact builds focused on speed, with an integrated motor and ESC to save space and reduce wiring.	1:30 scale SCX30 and compatible custom micro RC builds (Advanced compact builds focused on speed)

NANO CORE 30 Series: An Easy Start in Brushless

Choose CORE for value and simple setup. Both versions use the VENOM30 1212 motor platform, a plastic ESC housing, full FuriCar App support, 2S-only operation, and a 6V / 3A BEC. Select NANO CORE 30 for crawling or NANO CORE 30 SPEED for more wheel speed.

NanoModo Series: Advanced Performance

Choose NanoModo for a smaller, lighter motor platform, smoother and more precise control, and a CNC aluminum ESC housing. Both versions include full FuriCar App support, 2S to 3S battery compatibility, and a 5A BEC with selectable 5.5V or 7.4V output. NanoModo uses the Nano Komodo 1205 motor; NanoModo SPEED uses the Nano Komodo SPEED motor for higher wheel speed.

NANO UNITY Series: Compact 2-in-1 Integration

Choose NANO UNITY to integrate the ESC and motor into one compact unit, reduce wiring, and free up chassis space. Both versions include full FuriCar App support and a 5.5V / 5A BEC. NANO UNITY TORQUE supports 2S to 3S and prioritizes crawling torque. NANO UNITY SPEED supports 2S only and prioritizes higher wheel speed.
