🚀 Introducing the FURITEK MINI KOMODO UNITY

This system is specifically designed for Furitek TerraX, Terra Comp, Titan Buggy 18, and Titan Buggy 24 kits, and is not intended for use with other platforms.

Furitek is proud to unveil the FURITEK MINI KOMODO UNITY, the world’s first-ever brushless outrunner motor with a fully integrated FOC ESC inside.

🔧 Redefining Compact Power for Mini Crawlers

As the pioneers of FOC technology in micro RC crawling, Furitek takes it one step further. By embedding the ESC directly inside the legendary Mini Komodo outrunner motor, the UNITY eliminates external ESC wiring, reduces clutter, and gives you a super clean, ultra-efficient setup that’s lighter, cooler, and easier to install.

⚡ What Makes the UNITY System Revolutionary?

• 🧠 Integrated FOC ESC Inside the Motor

  This is not an external combo — the ESC is seamlessly built into the rear of the motor itself.

• 🔄 High-Performance Outrunner Motor

  Delivers incredible torque and ultra-smooth throttle response at the lowest speeds.

• 🧵 Cleanest Wiring Setup Ever

  No more bulky ESC wires — maximum space efficiency and unbeatable cable management.

• 🔌 True Plug-and-Play

  Drop it straight into your SCX24, AX24, or other 1/24-scale crawler without hassle.

• 📱 Wireless Configuration via Furicar App

  Tune live and update firmware on Android/iOS with no external programming module needed.

• 🔇 Signature Komodo Smoothness — Now with Built-in Intelligence

  Keep the silky smooth control you love, now smarter and more compact than ever.

Key Features

🧵 Clear and Clean Build

The integrated ESC-in-motor design enables an exceptionally clean and minimalistic setup. By eliminating external ESC units and messy wiring, this system allows for a clutter-free chassis, improving airflow, reducing weight, and making installation faster and more elegant — ideal for both scale realism and high-performance applications.

⚙️ FOC Technology

Field-Oriented Control (FOC) technology delivers exceptionally smooth throttle response and precise power delivery across all speeds. By intelligently regulating motor currents, FOC enhances driving control, improves efficiency, and reduces heat generation — ultimately extending the performance and lifespan of your RC crawler.

🔋 Integrated 5A BEC

The built-in BEC delivers a robust 5A output, capable of powering high-torque servos and heavy-duty rigs without requiring an external BEC. With selectable voltage settings of 5.5V and 7.4V, it offers flexibility for a wide range of crawler and scale builds.

🔌 2S–3S Battery Support

Designed with flexibility in mind, the system fully supports both 2S and 3S LiPo battery configurations. Whether you’re looking for extended runtime or higher performance, the ESC handles a wide voltage range with stable and reliable output, giving you more options to match your driving style and terrain.

📱 Mobile App Integration

The Furicar app — available for both Android and iOS — puts full control in your hands with real-time telemetry, live parameter tuning, and intuitive programming features. Its user-friendly interface allows you to fine-tune your system anywhere, anytime, ensuring peak performance in every terrain and condition.

🔄 Free Lifetime Firmware Updates

Enjoy lifetime access to free firmware updates, keeping your system up to date with the latest features, optimizations, and performance enhancements. The newest firmware algorithm improves startup smoothness and transitions your crawler into precise FOC control more seamlessly than ever.

📐 Ultra-Compact Size

Measuring just Ø23 × 21.3 mm (Ø0.91 x 0.84 inch), it fits tight builds with ease.

⚖️ Lightweight Design

Weighing only 25.1g (0.88 oz), the UNITY keeps your crawler nimble and responsive.

⚙️ Motor Specifications

• KV Rating: 2500KV – optimized for torque and smooth throttle response in micro crawler platforms.

• Maximum Power Output: 0.5W – delivers strong and reliable performance in compact scale builds.

• Battery Compatibility: Supports 2S–3S LiPo for versatile power setups.

⚡️ ESC Specifications

• Continuous Current: 30A – stable output for demanding crawls.

• Burst Current: Up to 50A – handles sudden load spikes with ease.

• Battery Support: 2S–3S LiPo – flexible voltage range for performance tuning.

• Built-in BEC: 5A with selectable 5.5V / 7.4V – powers high-torque servos without external units.

• Smart Programming: Fully adjustable via the Furicar mobile app for effortless tuning and updates on the go.

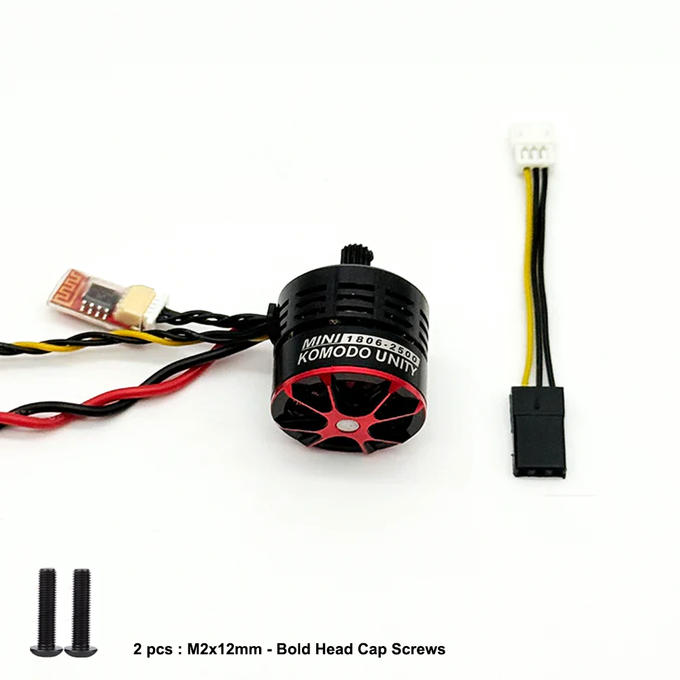

Package Includes:

• 1x Furitek MINI KOMODO UNITY 2-in-1 ESC/MOTOR with 14T pinion 0.3M

• 1x Furitek wireless module
• 1x User Manual
