TRI-UNITY30: Ultra-Slow Crawling. Full-Speed Freedom.

At the heart of the TRAIL PRO is TRI-UNITY30 FULLRANGE DRIVE™, which integrates the brushless motor, transmission and FOC ESC into one compact drivetrain. Unlike traditional SCX30 worm-gear drivetrains, it uses a geared transmission designed for smoothness, efficiency and a wide speed range.

• Ultra-smooth FOC low-speed crawling control
• Strong brushless torque for technical climbing
• Wide speed range, from ultra-slow crawling to fast trail driving
• Compact, low-mounted drivetrain for a low center of gravity
• Built-in WiFi for wireless ESC tuning through the FuriCar App

Get precise throttle control over challenging obstacles, with plenty of wheel speed available whenever you need it.

Titanium Trail Chassis with 21° Angled Skid

The lightweight titanium chassis is built for strength, versatility and serious crawling. The aggressive 21° angled skid, carried over from the KRAWL 30 COMP, improves breakover clearance and helps the truck slide over rocks instead of hanging up.

The chassis also features numerous shock mounting holes. Change shock angles and positions to adjust ride height, articulation and suspension response, and set the truck up for realistic trail driving or technical rock crawling.

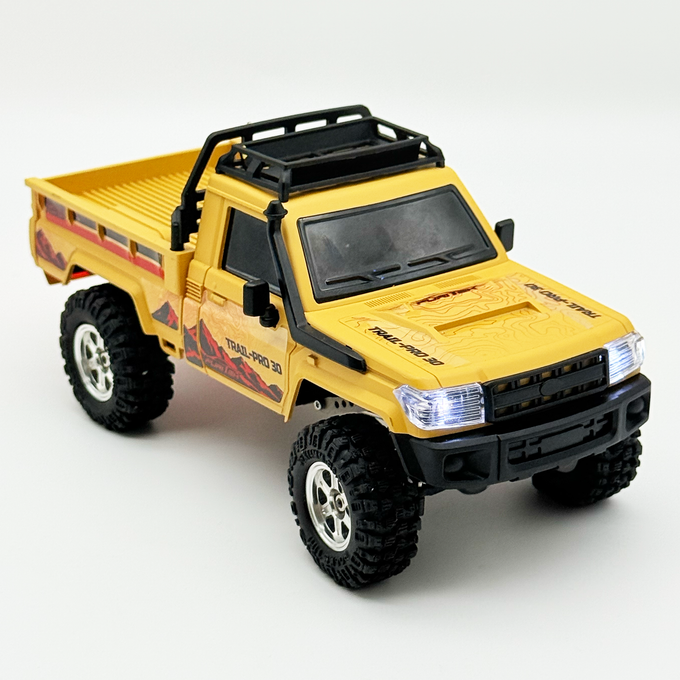

Realistic Pickup Hardbody with Magnetic Quick Release

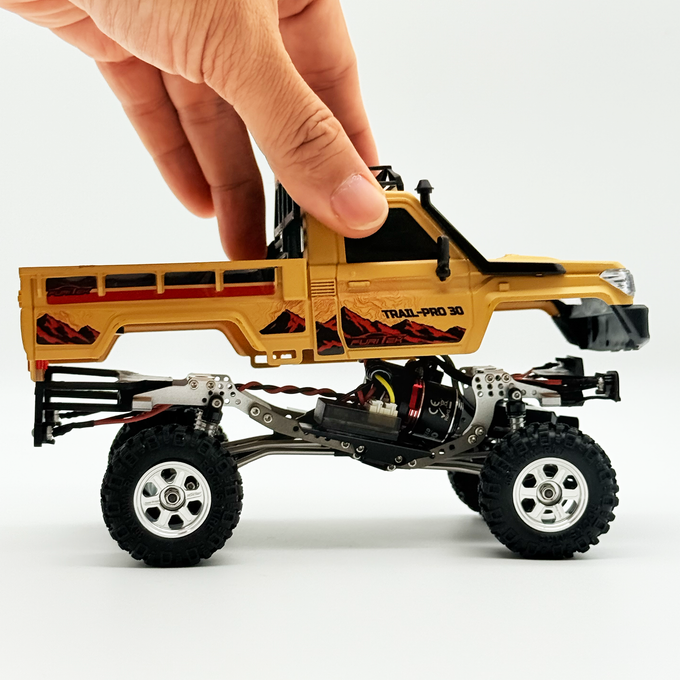

The Yellow Edition comes with a realistic factory-painted pickup hardbody for an authentic miniature truck look. The magnetic quick-release mounting system removes the need for body clips.

Lift the hardbody off for battery changes or maintenance, then snap it back into place. The aluminum modular mounting system is designed for easy body swaps.

CNC Aluminum Stock-Width Axles with Front Brass Weights

Unlike the competition-focused KRAWL 30 COMP with its +4 mm wider axles, the TRAIL PRO uses stock SCX30-width axles to keep realistic proportions and fit popular scale hardbodies.

Both axle housings are CNC aluminum for strength and durability. Brass front steering knuckle weights add mass low and forward to improve front tire traction when climbing.

FURITEK NANO FORCE Digital High-Speed Steering Servo

The TRAIL PRO introduces the Furitek NANO FORCE steering servo. It shares the performance specs of the ANT PRO used in the KRAWL 30 COMP, 0.050 sec/60° and 1.3 kgf·cm at 6V, with the same brushed coreless motor and metal gears, in a lightweight plastic housing instead of a CNC aluminum case.

Aluminum Wheels, High-Grip Tires and 25 mm Shocks

Aluminum wheels with high-grip rubber tires give the TRAIL PRO a realistic trail truck look and strong traction on rocks and uneven surfaces.

25 mm aluminum oil-filled shocks from the KRAWL 30 platform work with the titanium chassis and its multiple mounting positions for smooth, controlled articulation on any terrain.

One Titanium Chassis. Multiple SCX30 Hardbodies.

Built around a 99 mm wheelbase, the same as the Axial SCX30 Jeep Wrangler JLU, the TRAIL PRO supports direct installation of these SCX30 hardbodies:

Keep the same titanium chassis, TRI-UNITY30 drivetrain and suspension setup while switching between truck styles. Hardbodies other than the included pickup are not included.

Technical Specifications

NANO FORCE Servo Specifications

Replacement & Spare Parts

The following parts are available separately for KRAWL 30 TRAIL PRO maintenance, repairs and upgrades.

Recommended Tool

FUR-2777 - FURITEK PITBOX MICRO TOOL KIT FOR SCX30

Compact micro tool kit recommended for TRAIL PRO maintenance, suspension tuning, setup and field repairs. Sold separately.
