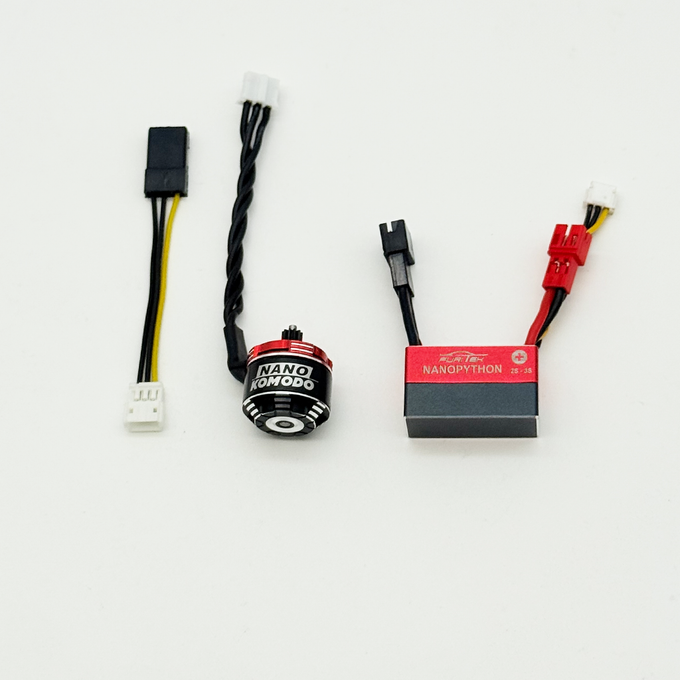

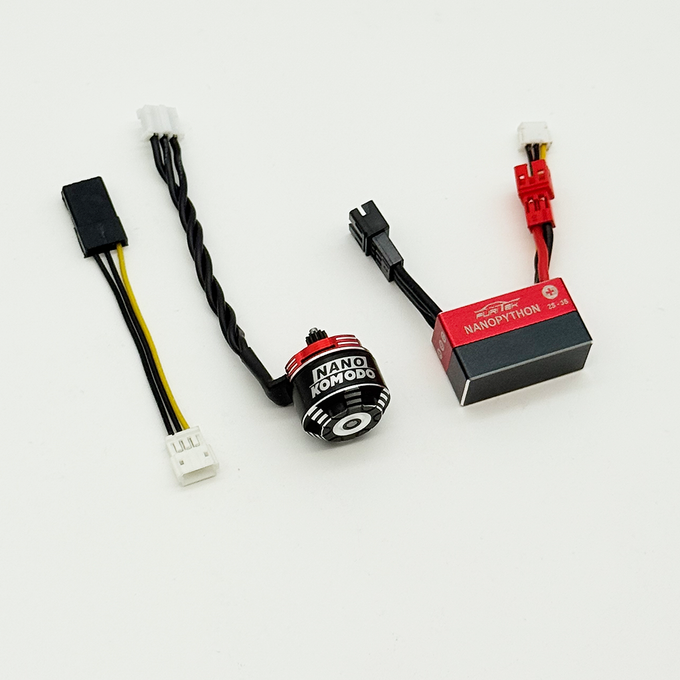

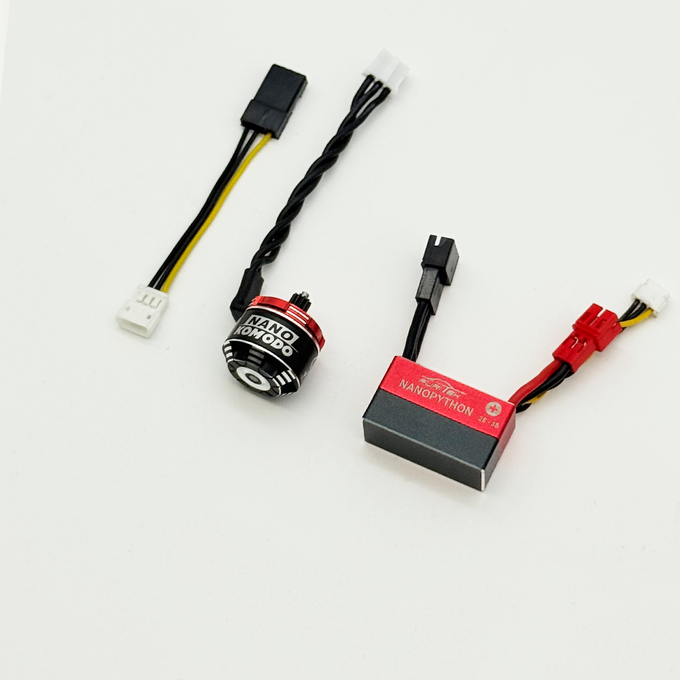

Furitek NanoModo 2026 Brushless Power System with NanoPython and NanoKomodo for Redcat ASCENT-32

Furitek NanoModo Brushless Combo: Next-Generation Compact Power for Redcat ASCENT-32

Introducing the Furitek NanoModo 2026 Brushless Combo, the next evolution of the legendary MicroModo system — now smaller, smarter, and even smoother!

Specifically designed for the Redcat ASCENT-32, the NanoModo 2026 combines the NanoPython Brushless ESC with built-in wireless tuning and the NanoKomodo high-performance brushless motor, delivering unmatched torque, precision, and control in an ultra-compact form factor.

Experience the next generation of micro brushless performance — lightweight, powerful, and perfectly tuned for your ASCENT-32 crawler.

Requirements:

• A standard 2–4 channel radio system

• Requires 2S–3S LiPo battery (not compatible with stock 1S battery)

• Requires servo upgrade — the stock servo has no control circuit and is not compatible with the NanoModo system

NanoModo Features

Tailored for Redcat ASCENT-32

The NanoModo Brushless Combo is precision-engineered to fit perfectly into the compact chassis of the Redcat ASCENT-32, ensuring a clean installation and delivering outstanding crawling performance in a truly micro-scale package.

All-New NanoPython ESC

The NanoPython is Furitek’s smallest and most advanced FOC brushless ESC ever. It features a built-in wireless tuning module, allowing direct connection to the Furicar App on iOS and Android for easy setup, tuning, and real-time telemetry — no cables or adapters required.

Requires 2S–3S LiPo Power

For best performance, the NanoModo system is designed to run on 2S or 3S LiPo batteries.

⚡ Upgrading from the stock 1S battery unlocks the true potential of the brushless system, providing stronger torque, faster response, and smoother throttle feel throughout the range.

Brushless Power System

The fully brushless FOC design provides superior efficiency, ultra-smooth throttle control, and much higher torque compared to brushed systems — making it the ultimate upgrade for serious micro crawler enthusiasts.

High-Performance NanoKomodo Motor

The NanoKomodo brushless motor is engineered for maximum torque and efficiency, delivering exceptional low-speed crawling power while maintaining strong top-end speed — perfectly matched to the ASCENT-32’s lightweight drivetrain.

Ultra-Compact and Clean Design

Both the ESC and motor are incredibly small and lightweight, giving you maximum flexibility in tight ASCENT-32 builds while maintaining a clean, professional installation.

Powerful 5A BEC

A built-in 5.5V / 7.4V 5A BEC provides stable, high-current output to power any micro servo — even the most torque-hungry high-performance models.

Unmatched Smoothness and Control

Powered by Furitek’s advanced FOC (Field-Oriented Control) algorithm, the NanoModo system delivers buttery-smooth throttle response and precision control at even the lowest RPMs — ideal for realistic crawling and scale-accurate maneuvering.

Why Choose the NanoModo Combo?

Specifically designed for the new ASCENT-32, the Furitek NanoModo 2026 system combines cutting-edge brushless technology with extreme compactness and intelligent wireless tuning.

It’s the ultimate upgrade for drivers who want the best performance, cleanest installation, and smoothest control in a micro crawler setup.

NanoModo 2026 — smaller, smarter, and smoother.

Compact power perfected. Built for ASCENT-32.

NanoPython Features

• FOC (Field-Oriented Control technology)

• Built-in wireless tuning module (connects via Furicar App on iOS & Android)

• Super slow and ultra-smooth throttle response

• New-generation firmware with optimized startup and FOC transition

• Supports Brushed/Brushless motors (switchable via app, default brushless)

• Powerful 5A BEC for high-torque servos

• Ultra-compact and lightweight design

• Easy tuning and monitoring via mobile app

• Real-time telemetry up to 10Hz

• Free lifetime firmware updates

NanoPython Specifications

• Input Voltage: 2–3S LiPo

• BEC: 5.5V / 7.4V, 5A

• Continuous Current: 20A

• Burst Current: 50A

• Built-in Wireless Tuning Module

• Dimensions: 23 x 10 x 14 mm (0.91 x 0.39 x 0.55 inch)

• Weight: 7.9g (0.28 oz)

NanoKomodo Motor Features

• 12-pole high-torque motor design

• Ultra-thin 0.2mm stator laminations for reduced eddy losses and higher efficiency

• Japanese NMB high-speed ABEC5 bearings for durability

• Precision-balanced rotor for exceptional smoothness and reliability

• CNC-machined 6061-T6 aluminum heatsink can for superior cooling

• High-purity copper windings for maximum power and thermal stability

• Optimized torque curve for micro crawler gearing and SCX30 drivetrain

NanoKomodo Specifications

• KV (RPM/Volt): 3450KV

• No-load Current @10V: 0.6A

• Power: 100W

• Battery: 2–3S LiPo

• Resistance: 0.18Ω

• Max Current: 10A

• Slot/Pole: 12


• Shaft (mm): 1.5 × 6

• Weight: 10g

Furitek NanoModo 2026 — The Future of Nano Brushless Power.

Smaller Size. Smarter Control. Smoother Performance.
