Furitek KOMODO brushless motor

SKU: FUK-2054
$24.99
  • Brand: Furitek
  • Availability: In Stock

Features:14 Pole 12 slot hi-torque motor design.High purity and higher temperature single copper winding --- lower copper losses, very good heat dissipating--maximizes efficiency.Super thin (0.2 mm) stator laminations --- lower eddy losses --- maximizes efficiency.Japansese NMB-- High RPM ABEC5 bearings.Precision balanced rotor, smoothness for best reliability and maximum RPM.CNC machined...

Import tax can be charged at receiving. Buyers are responsible to pay import tax if incurred

UPS can not delivery in P.O box


Features:
14 Pole 12 slot hi-torque motor design.
High purity and higher temperature single copper winding --- lower copper losses, very good heat dissipating--maximizes efficiency.
Super thin (0.2 mm) stator laminations --- lower eddy losses --- maximizes efficiency.
Japansese NMB-- High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.

Specifications:
KV (RPM/Volt): 1400
No-load Current(@10v): 0.5A
Watt: 180W
Battery: 2-4S
Resistance: 0.24ohm
Max Current: 15A
Slot/Pole: 12S14P
Motor Size: Ø 28 * 19 mm
Stator Size: 2204
Weight(g): 29.5g

Package includes:
- 1x Furitek KOMODO 2204 1400kv brushless motor
- 2x M3x14 Round Head Hex Screws

Customer Reviews

Based on 18 reviews
100%
(18)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
J
J.S.

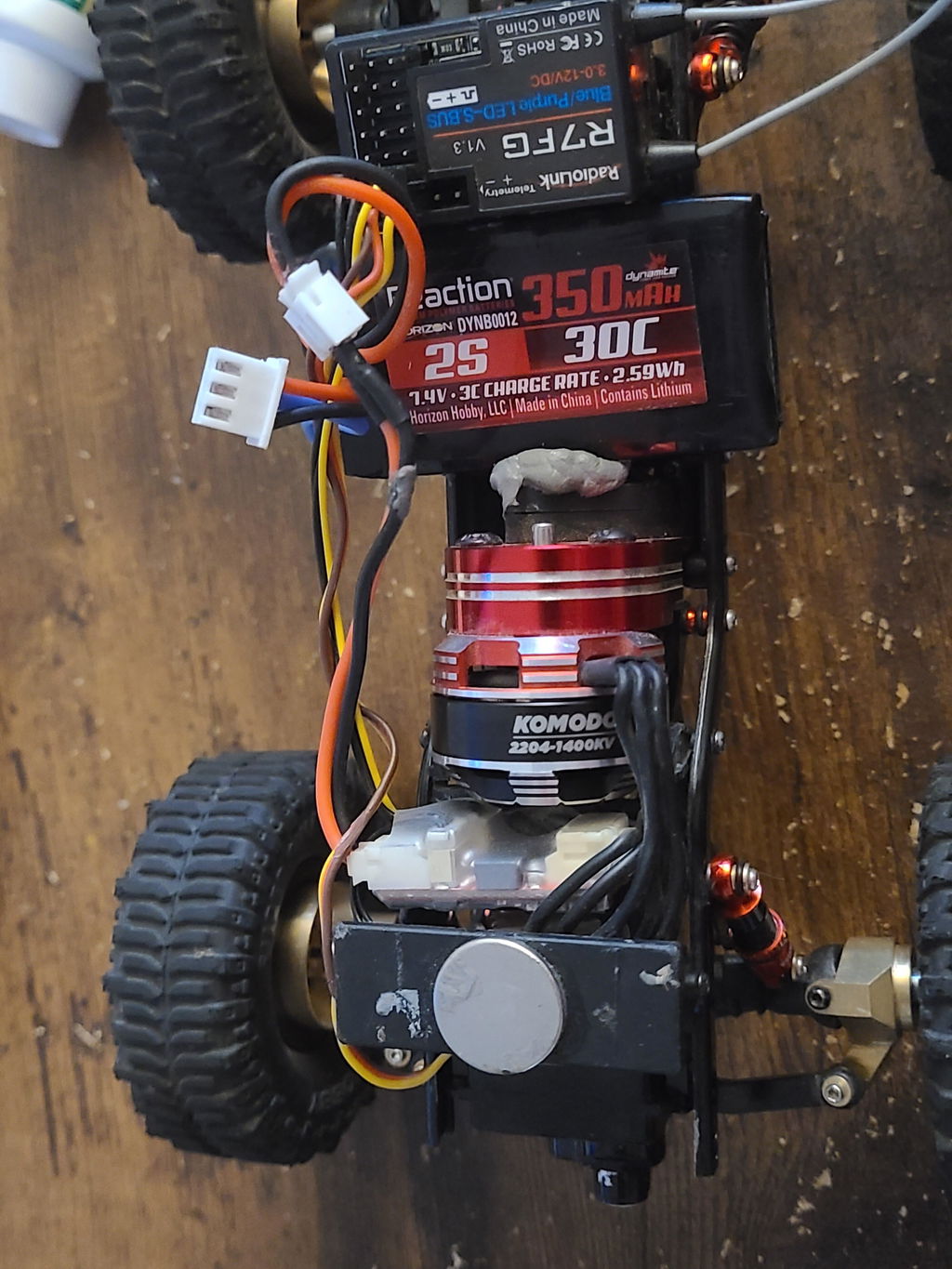

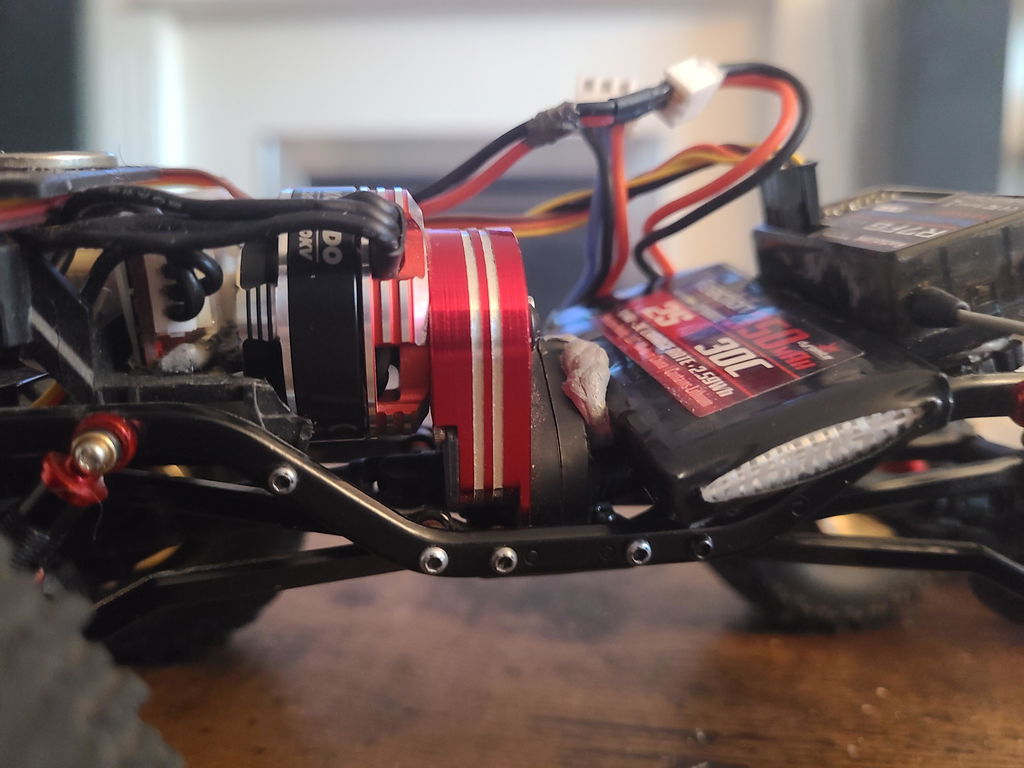

The Best for Crawling

This motor requires a bit of modification to the plastic mounts for the battery or ESC mount, but it is easy enough to do.

Beyond that, this is a fantastic motor set up with a furitek esc. The slow crawl ability is CRAZY! Not to mention you can also change your throttle response through the app if you get a Bluetooth version of an esc. Strongly recommend purchasing the Bluetooth enabled esc's for more adjustment options.

Batteries last far longer than a standard 88t brushed motor on a scx24.

I'm from Canada and the cost for the Lizard esc and komodo was $230, but it is absolutely worth the cost. Raving customer support put me over the edge when my stock esc/rx wouldn't boot after less than a month.

Running this setup for 2 months and it is still going strong. Save up and get a furitek upgrade for your scx24. You won't regret it!

B
Brian Sykes
Positive so far

I haven't had a chance to drive my Axial SCX24 Deadbolt, other than on a wooden floor. I wish I would have known about mounting the products to the SCX24. I had to mount the electronics vertical, which has made me raise the body. But that's my fault, I should have read the specs. Looking back on it, I probably should have ordered a Lizard. But, I figure the Tegu was the latest and greatest you had out. Again, my fault. Plus, I wanted a 3s option and maybe being able to mount the motor reversed could have helped

r
richard knabel
You got to try this

This is a great upgrade that will completely change the way you truck drives.

m
mark barrington

Furitek KOMODO brushless motor

C
Christopher Robertson

Awsome, cant get much better
