*** Furitek Esc is not compatible with HRZ00015 Board *** Features:- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)- FOC (Field-oriented control) technology- Plug & Play designed for AXIAL SCX24 crawlers- 5V/ 6.5V 2.5A Built-in BEC (config via app)- Support 2S-3S lipo battery...
Import tax can be charged at receiving. Buyers are responsible to pay import tax if incurred
UPS cannot deliver to a PO Box
*** Furitek Esc is not compatible with HRZ00015 Board ***
Features:
- Support sensorless brushless DC and brushed DC motor (config via app, default is brushless)
- FOC (Field-oriented control) technology
- Plug & Play designed for AXIAL SCX24 crawlers
- 5V/ 6.5V 2.5A Built-in BEC (config via app)
- Support 2S-3S lipo battery - Mini size and lightweight
- Super easy programming via App on both Android and IOS
- Firmware update available (Bluetooth module required)
- Real-time telemetry up to 10Hz - Ability to run with stock TX/RX or any other TX/RX
⚠️⚠️⚠️ WARNING ⚠️⚠️⚠️
3s only works best with 2204 1400kv motors and 050 Brushed Motor
Specifications:
- Support 2S-3S lipo battery
- BIG BEC: 5V or 6.5V 2.5A (Don’t need external BEC if use big Servo)
- Constant current: 30A
- Burst current: 50A
- Build-in Switch power
- Dimension (mm): 28(L)x 15.5(W)
- Weight: 3.7 gram
Note: Furitek ESC only support: Komodo 2204 1400kv, Micro Komodo 3450kv, Mini Komodo 2000kv. Don't run motors with high KV like 4100 on 3S
What's included in the package?
1. Lizard Pro Esc x 1pc
2. Furitek Bluetooth x 1pc
3. Power Cable x 1pc
4. Heat Shrinkable Tube x 1 pc
5. Servo to Jst Receiver x 1 pc

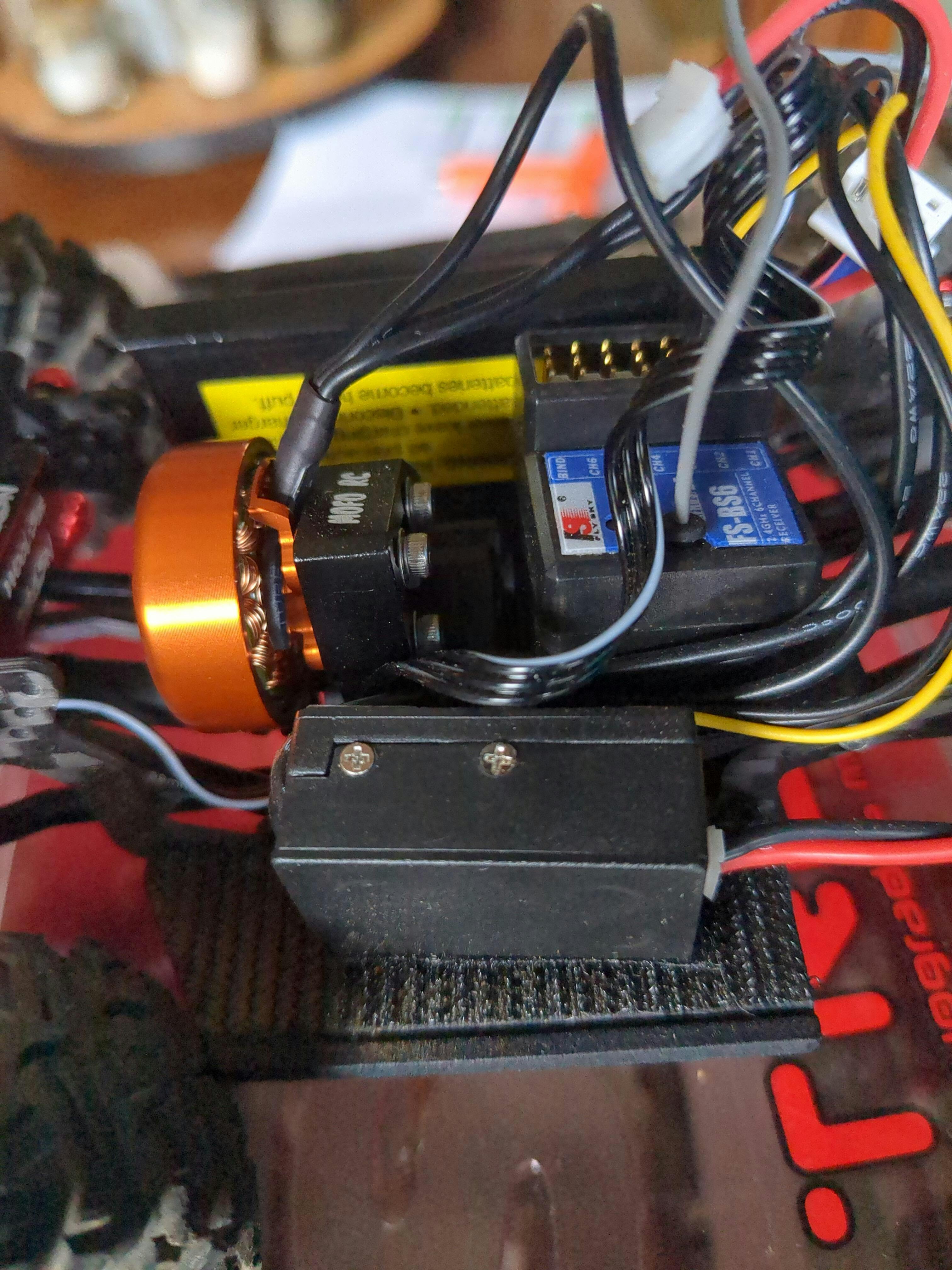

I run this on my Axial AX24 coupled with an INJORA brushed 050 50T Pro motor.
That combination has basically turned the AX24 into a completely new crawler.
It gives the ability for extremely slow speeds.
I have seen a few you tube videos and decided it was worth a try. Totally transformed my Axial Deadbolt converting it to a Furitek brushless system. Next Item to get is the Avatar radio system 4WS version. Couldn't be happier with the service provided.
This setup works great in my comp build rig. Great control for slow crawl.
This is the 5th Furitek unit I've bought for my Axial 24th crawlers.
As always top performance from this tiny unit that allows me a tidy fitment.
Perfect in every way.
Performance wise it works exactly like the other lizards in the range but with a better power handling and BEC...ideal for my porky twin servo set up at over 500 grams.
