Furitek KOMODO brushless motor

SKU: FUK-2054
$24.99
  • Brand: Furitek
  • Availability: In Stock

Furitek KOMODO brushless motor Features:14 Pole 12 slot hi-torque motor design.High purity and higher temperature single copper winding --- lower copper losses, very good heat dissipating--maximizes efficiency.Super thin (0.2 mm) stator laminations --- lower eddy losses --- maximizes efficiency.Japansese NMB-- High RPM ABEC5 bearings.Precision balanced rotor, smoothness for best reliability...

Import tax can be charged at receiving. Buyers are responsible to pay import tax if incurred

UPS cannot deliver to a PO Box

Furitek KOMODO brushless motor

Features:
14 Pole 12 slot hi-torque motor design.
High purity and higher temperature single copper winding --- lower copper losses, very good heat dissipating--maximizes efficiency.
Super thin (0.2 mm) stator laminations --- lower eddy losses --- maximizes efficiency.
Japansese NMB-- High RPM ABEC5 bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
CNC machined 6061 T6 billet aluminum heatsink can.
Precision engineered for maximum energy conversion.

Specifications:
KV (RPM/Volt): 1400
No-load Current(@10v): 0.5A
Watt: 180W
Battery: 2-4S
Resistance: 0.24ohm
Max Current: 15A
Slot/Pole: 12S14P
Motor Size: Ø 28 * 19 mm
Stator Size: 2204
Weight(g): 29.5g

Package includes:
- 1x Furitek KOMODO 2204 1400kv brushless motor
- 2x M3x14 Round Head Hex Screws

Customer Reviews

Based on 19 reviews
100%
(19)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
K
Kyle surkovich
Great motor

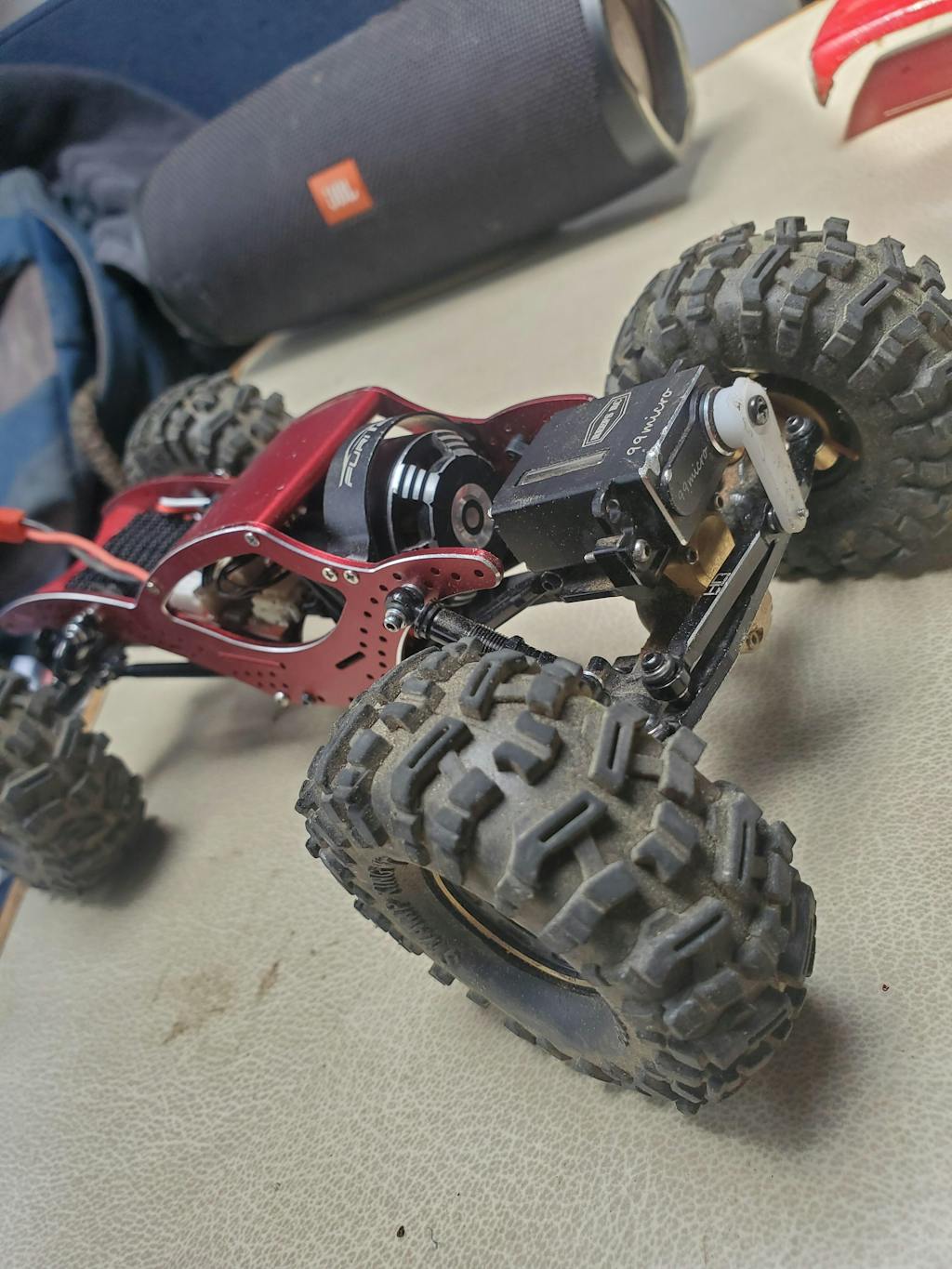

Had this motor on my rig for over a year now, it is solid and powerful! My rig has a lot of weight in wheels and brass parts. This thing dosent even flinch at it, with a 3s battery i have all the power. Motor hardley ever gets hot even after a hard crawl sesh. If you have a bigger rig or weight this motor will do everything and more.

J
J.S.
The Best for Crawling

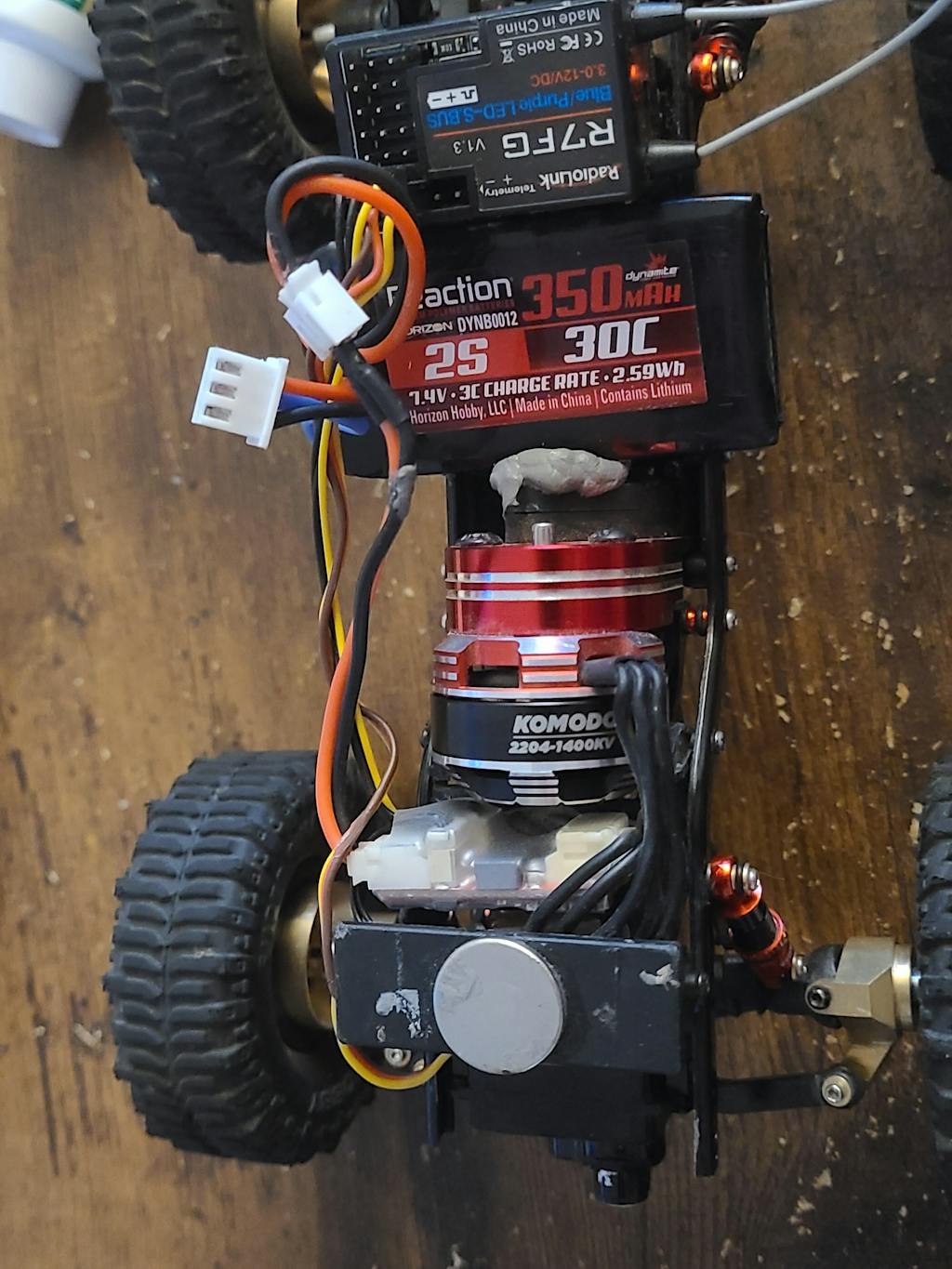

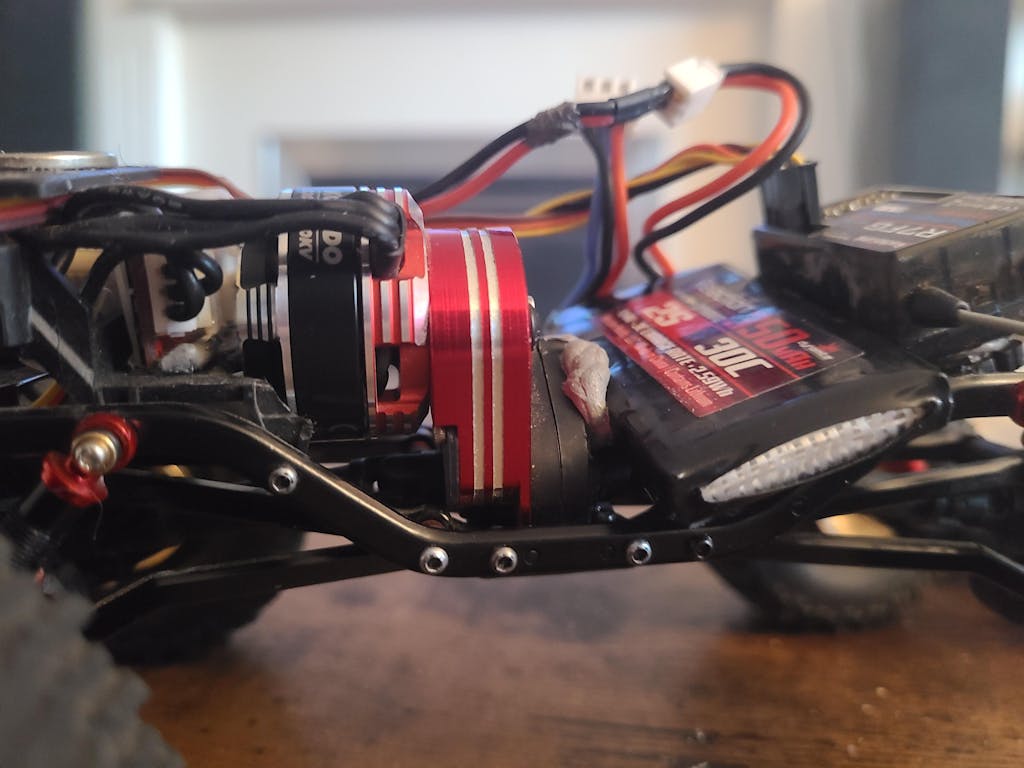

This motor requires a bit of modification to the plastic mounts for the battery or ESC mount, but it is easy enough to do.

Beyond that, this is a fantastic motor set up with a furitek esc. The slow crawl ability is CRAZY! Not to mention you can also change your throttle response through the app if you get a Bluetooth version of an esc. Strongly recommend purchasing the Bluetooth enabled esc's for more adjustment options.

Batteries last far longer than a standard 88t brushed motor on a scx24.

I'm from Canada and the cost for the Lizard esc and komodo was $230, but it is absolutely worth the cost. Raving customer support put me over the edge when my stock esc/rx wouldn't boot after less than a month.

Running this setup for 2 months and it is still going strong. Save up and get a furitek upgrade for your scx24. You won't regret it!

B
B
Positive so far

I haven't had a chance to drive my Axial SCX24 Deadbolt, other than on a wooden floor. I wish I would have known about mounting the products to the SCX24. I had to mount the electronics vertical, which has made me raise the body. But that's my fault, I should have read the specs. Looking back on it, I probably should have ordered a Lizard. But, I figure the Tegu was the latest and greatest you had out. Again, my fault. Plus, I wanted a 3s option and maybe being able to mount the motor reversed could have helped

r
richard knabel
You got to try this

This is a great upgrade that will completely change the way you truck drives.

m
mark barrington

Furitek KOMODO brushless motor
